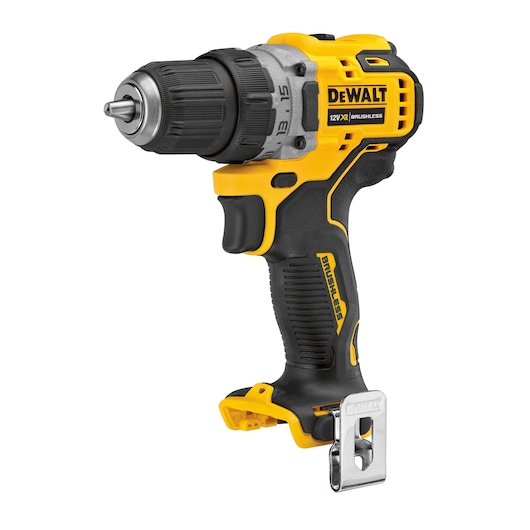

12V XR Brushless Sub-Compact Drill Driver - Bare Unit

Product Overview

The DCD701 12V XR drill driver is designed for precision applications like small pilot holes, but also can handle up to a 20mm drill bit into Timber. Small enough to fit in the tightest places at only 152mm long and enough power to get the job done with 57.5Nm of torque and a 2 speed transmission. It also features a bright LED positioned on the foot to illuminate all work areas.

Additional Features

  • Bright LED light on tool foot for high visibility in low light situations
  • Efficient brushless motor gives 15% more runtime than previous generation
  • Only 0.9kg (tool only) for ultimate portability and ease of use
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • 10mm single sleeve keyless chuck with automatic spindle lock for quick and easy bit change


  • All wood drilling tasks up to 20mm
  • Screwdriving
  • Screwdriving


  • (1) Belt Hook


Battery Voltage
12 V
Chuck Capacity
10 mm
Battery Capacity
2 Ah
Battery Chemistry
No Load Speed (RPM)
Product Height
185 mm
Product Weight
0.87 Kg
Max Torque
57.5 Nm
Maximum Drilling Diameter [Steel]
10 mm
Power Output
250 W
60 mm
Variable Speed
Product Length
152 mm
Max. Drilling Capacity (Wood)
20 mm



  • 3 Year Limited Warranty

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
