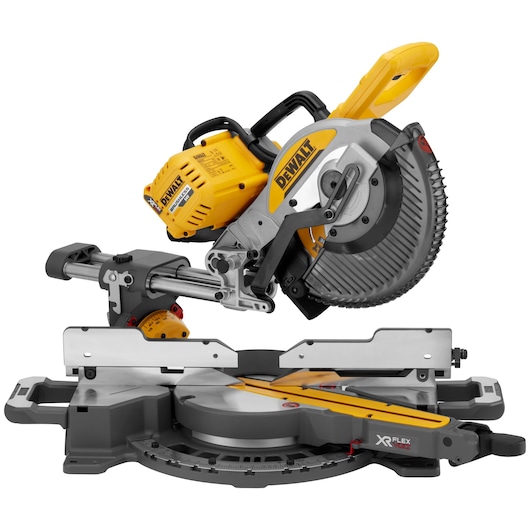

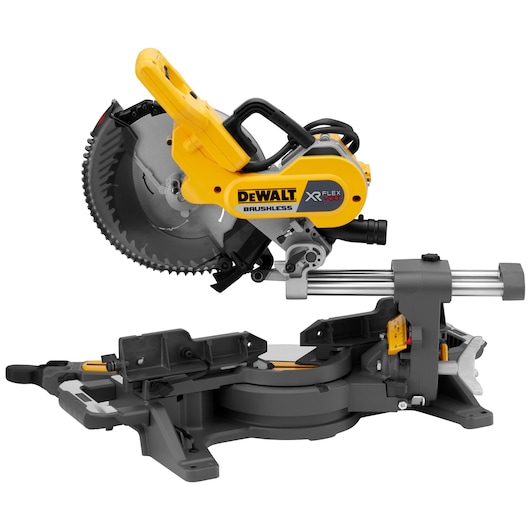

54V XR FLEXVOLT 250mm Mitre Saw - Tool Only
DCS727N-XJ
54V XR FLEXVOLT 250mm Mitre Saw - Tool Only
- LONG RUNTIME: 200 cuts in 100 x 50mm softwood, on a single 6Ah FLEXVOLT battery
- DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
- AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
Product Overview
The DCS727 offers the ultimate combination of accuracy, power and cordless freedom. Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 54V brushless motor also offers a maximum cutting capacity of 305 x 77mm. Other features include Wireless Tool Control to enable automatic stop start dust extraction when used with the DCV586M, XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and machined side handles for increased portability on site. Bare unit, batteries and charger sold separately.
Additional Features
- WTC DUST EXTRACTION: Wireless Tool Control allows direct connection to a compatible vac with auto stop/start
- DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
- MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
- 3 YEAR GUARANTEE: Tool and battery covered by extended warranty, subject to registration
- PART OF THE CORDLESS 54V XR FLEXVOLT SYSTEM: Power Of Corded. Freedom Of Cordless
- 54V XR BRUSHLESS MOTOR: Enhanced efficiency and durability
- IMPRESSIVE CROSS CUT CAPACITY: 90mm x 290mm at 90°
- HIGH DEPTH OF CUT: Up to 150mm x 28mm skirting board cut upright at the fence
- LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles
- COMPACT & LIGHTWEIGHT: Application focussed cut capacities, with a lightweight compact design for easy transport around the jobsite
- XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required
- STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees
- CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
Includes
- (1) 54V XR FLEXVOLT 250mm Mitre Saw
- (2) Base Extensions
- (1) Blade Wrench
- (1) 36 Tooth Blade
- (1) Material Clamp
Specifications
|
Battery Chemistry
|
Lithium Ion
|
|
Battery Voltage [V]
|
18
|
|
Bevel Capacity [deg]
|
49/49°
|
|
Blade Bore [mm]
|
30
|
|
Blade Diameter [mm]
|
250
|
|
Blade Speed [rpm]
|
4300
|
|
Has Supplied in Storage Case Indicator?
|
No
|
|
Max. Cutting Capacity (45°/45°) [mm]
|
210 x 50
|
|
Max. Cutting Capacity (45°/90°) [mm]
|
210 x 77
|
|
Max. Cutting Capacity (90°/45°) [mm]
|
305 x 50
|
|
Max. Cutting Capacity (90°/90°) [mm]
|
305 x 77
|
|
Max. Depth of Cut [mm]
|
150 x 28
|
|
No Load Speed [RPM]
|
4300
|
|
Packaging
|
Carton
|
|
Possible Mitre Angles [deg]
|
50°/60°
|
|
Power Source
|
Cordless
|
|
Product Height [mm]
|
460
|
|
Product Length [mm]
|
770
|
|
Product Weight [Kg]
|
20.5
|
|
Product Width [mm]
|
480
|
|
Saw Blade Thickness [mm]
|
2.16
|
|
Uncertainty K1 (Vibration)
|
1.5 m/s2
|
|
Voltage [V]
|
54
|
