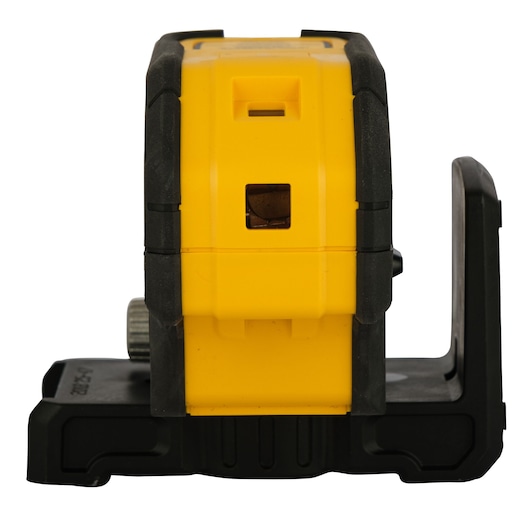

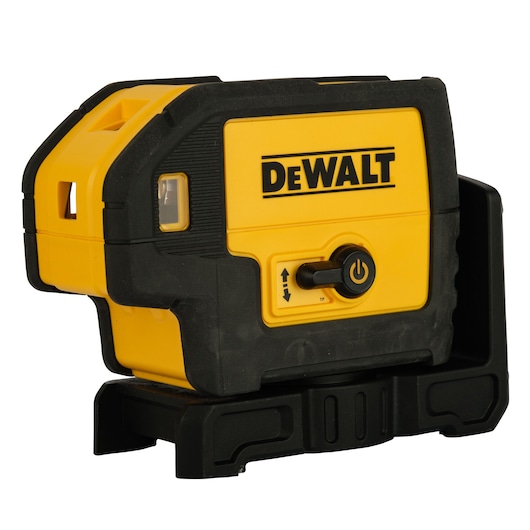

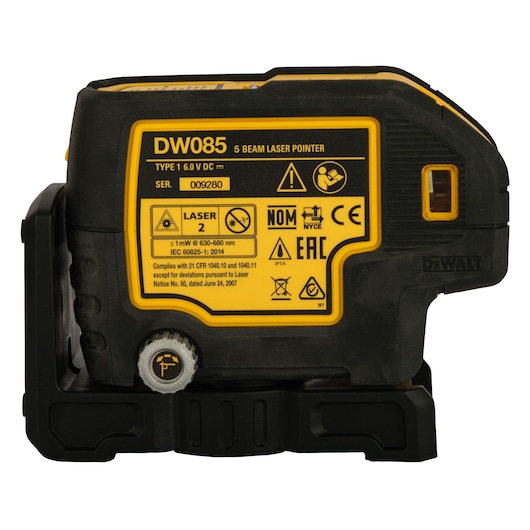

5 Beam Laser Pointer
DW085K
5 Beam Laser Pointer
- Available in: India and Taiwan
- Self-leveling point laser is accurate to ±1/4 in. @ 100'
- Single lever power switch locks pendulum in the off position for added durability
Product Overview
The DW085K 5 Beam Laser Pointer includes a single lever power switch locks pendulum in the off position for added durability and a built-in magnetic pivoting bracket, which mounts easily on metal surfaces.
Additional Features
- Micro adjust knob for precise alignment of 90° intersecting lines over greater distances
- Built-in magnetic pivoting bracket mounts easily on metal surfaces
- Integrated track clearance enables users for fast and easy bottom and top track installation
- Overmolded housing helps maintain calibration under job-site conditions
- Focused laser beam keeps dot size small over longer distances for improved accuracy and visibility
Applications
- Steel Track Installation and Layout
- Curtain-wall Installation
- Floor to ceiling transfer
- General leveling over long distances
- Setting Joists
- Running Electrical
- Running Plumbing
- porch/deck can lights
- Interior Can Lights
- Running wire
- vertically aligned lighting
- Running Plumbing pipe
Includes
- (2) Case
- (3) Battery
- (4) Ceiling Bracket
- (1) Kit Box
Specifications
|
Materials Housing
|
Plastic + Rubber Overmold
|
|
Color
|
Yellow
|
|
Product Width [Metric]
|
55 mm
|
|
Battery Run Time Hrs.
|
15
|
|
Number of Beams
|
5
|
|
Laser Beam Projection
|
Cross + 5 Spot
|
|
Product Height [Metric]
|
106 mm
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Battery Included
|
Yes
|
|
Range
|
100 ft.
|
|
Line Diagram
|
Cross Line/5 Spots
|
|
Laser Beam Color
|
Red Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
7
|
|
Number of Batteries Included
|
4
|
|
Product Length [Metric]
|
135 mm
|
|
Is it a Set
|
No
|
