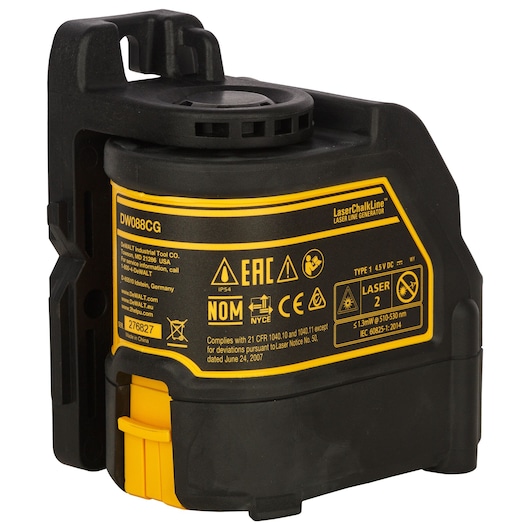

Cross Line Green Laser
DW088CG-XJ
Cross Line Green Laser
- Available in: India, Malaysia and Taiwan
- WORKING RANGE: 30m (50m with detector)
- PROFESSIONAL ACCURACY: +/- 3mm at 10M distance
Product Overview

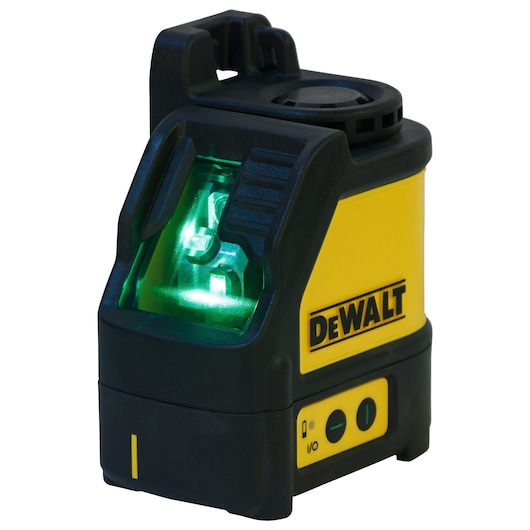

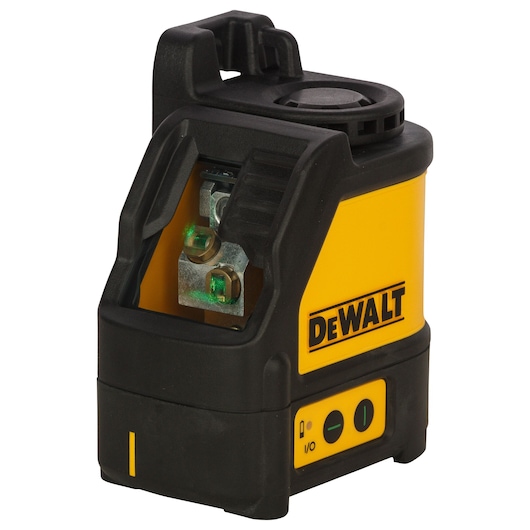

Self levelling cross line laser projects bright horizontal and vertical lines that can be used independently or as a cross. Two button control. Full time pulse mode allows use with detector. Maintains full brightness for visibility and extended working range. Durable design with IP54 rated water and debris resistance.
Additional Features
- SELF LEVELING CROSS LINE LASER: Projects bright crossing horizontal and vertical lines

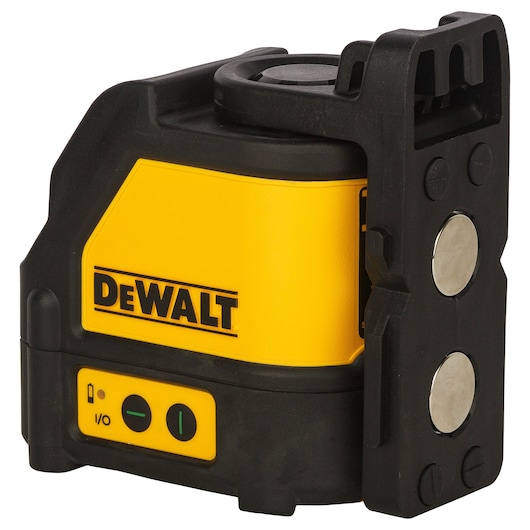

- INTEGRATED MAGNETIC PIVOTING BASE WITH ¼” THREAD: For flexible mounting options directly onto metal track, with the supplied ceiling bracket, or on a tripod

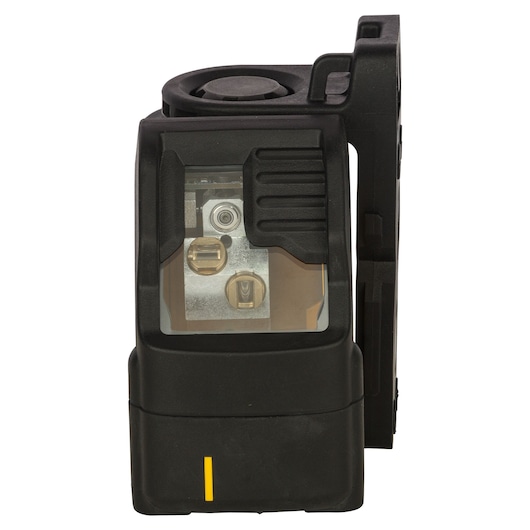

- OVERMOLDED HOUSING AND THICK GLASS: Protects the tool and helps maintain calibration under jobsite conditions
- IP54 RATING: Debris/water resistant for tough jobsite conditions

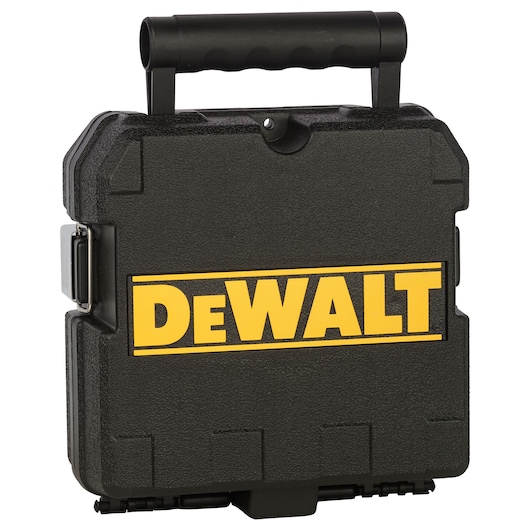

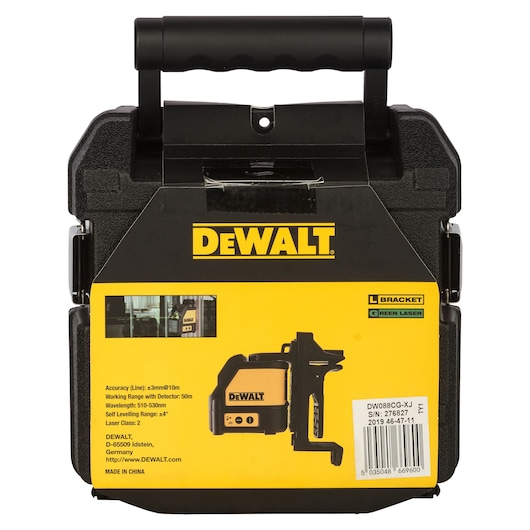

- KIT BOX: Protects unit and helps maintain calibration when stored in gang box
- SELF LEVELING UP TO 4 DEGREES SURFACE ANGLE WITH AUTOMATIC OUT OF LEVEL INDICATION: Marks a levelled line in seconds
- DUST SEALED BUTTONS: Touch Pad Control Panel, 2 button operation and low battery indication for ease of use
- DETECTOR COMPATIBLE: Works with DE0892CG detector
- DURABLE DESIGN: 1m drop resistance
- GREEN BEAM LASER DIODE: Provides full brightness for visibility and extended working range

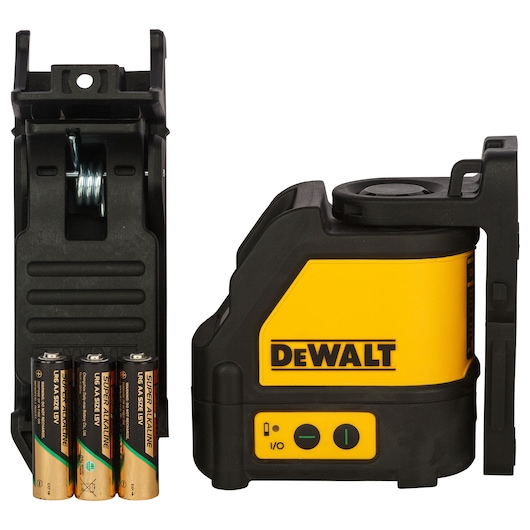

Includes
- (1) Laser Level
- (1) Case
- (1) Battery
- (1) Mounting Bracket
Specifications
|
Accuracy Class
|
II
|
|
Product Width [Metric]
|
61 mm
|
|
Working Distance with Detector [Metric]
|
100 m
|
|
Laser Accuracy
|
± 3mm @ 10 m
|
|
Number of Beams
|
2
|
|
Working Range [Metric]
|
20
|
|
CE Mark
|
Yes
|
|
Laser Beam Projection
|
Cross Line
|
|
Product Weight [Metric]
|
0.55 g
|
|
Product Height [Metric]
|
113 mm
|
|
Visible Working Distance [Metric]
|
30 m
|
|
Battery Quantity
|
3
|
|
IP Rating
|
IP54
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Battery Included
|
Yes
|
|
Line Diagram
|
Cross Line
|
|
Laser Beam Color
|
Green Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
6
|
|
Product Length [Metric]
|
112 mm
|
|

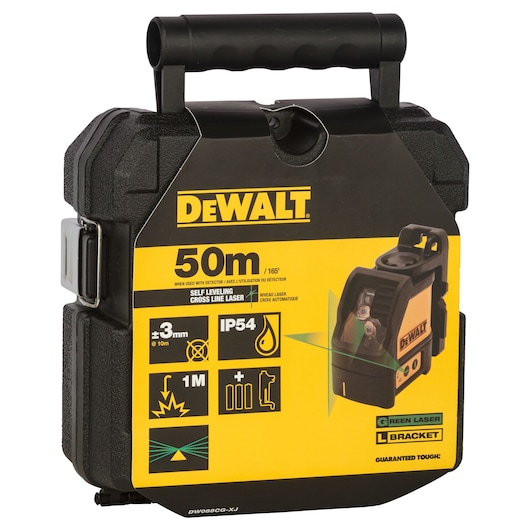

Packaging
|
Sleeve
|
|
Number of Batteries Included
|
3
|
Support
Warranty
- 1 Year Limited Warranty
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
