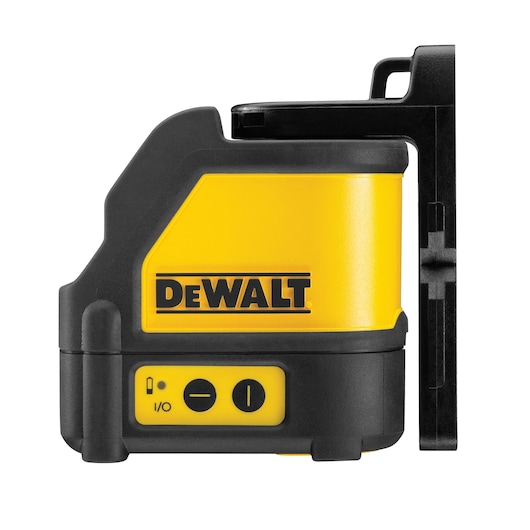

Cross Line Red Laser
DW088K-XJ
Cross Line Red Laser
- Available in: India and Taiwan
- Overmolded housing and thick glass protects the tool and helps maintain calibration under jobsite conditions
- IP54 - Debris/water resistant with overmoulded housing and thick glass that protects the tool and helps maintain calibration under jobsite conditions
Product Overview

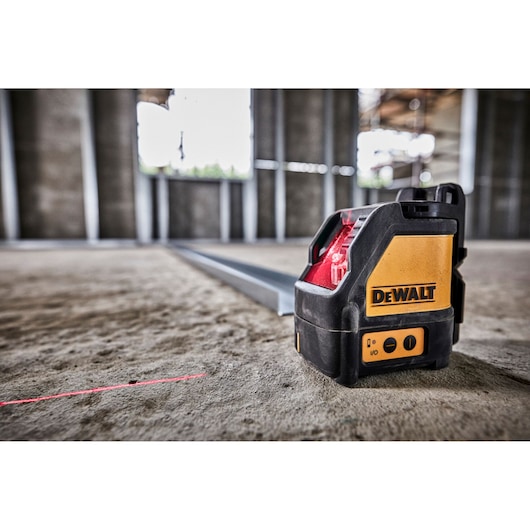

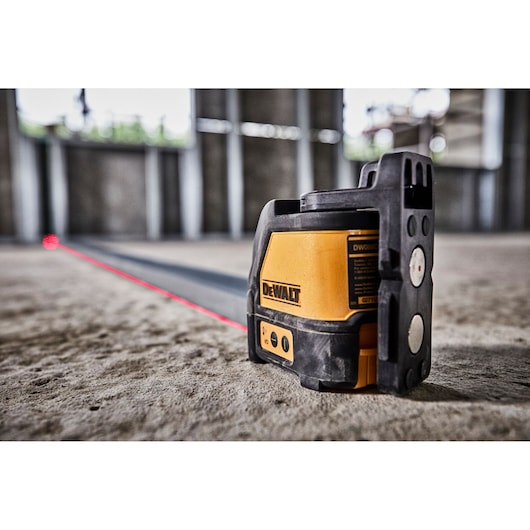

Self levelling cross line laser projects bright horizontal and vertical lines that can be used independently or as a cross. Two button control. Full time pulse mode allows use with detector. Maintains full brightness for visibility and extended working range. Durable design with IP54 rated water and debris resistance.
Additional Features
- Kit box protects unit and helps maintain calibration when stored in gang box
- Self-Levelling up to 4 degrees surface angle with automatic out of level indication, marks a levelled line in seconds
- Touch Pad Control Panel, 2 button operation and low battery indication for ease of use
- Works with DE0892 detector
- Projected Lines: Vertical, Horizontal or Cross line.
- Magnetic pivoting base with ¼” thread.
- Rear mounted magnets allow flush attachment to metal track and steel.
- Battery Life Indicator.

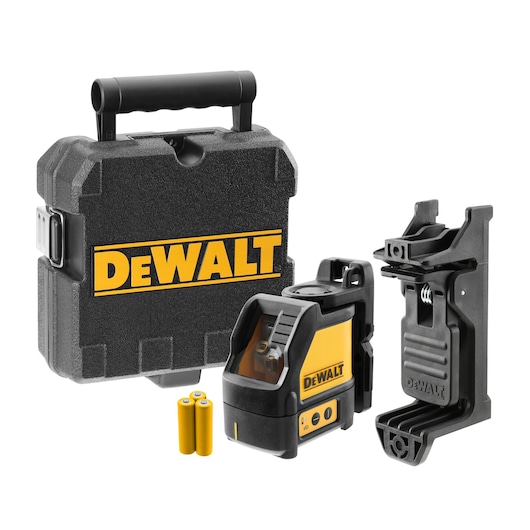

Includes
- (1) Laser Level
- (1) Case
- (1) Battery
- (1) Mounting Bracket
Specifications
|
Laser Accuracy
|
+/-3mm@10m
|
|
Working Distance with Detector [Metric]
|
50 m
|
|
Number of Beams
|
2
|
|
CE Mark
|
Yes
|
|
IP Rating
|
IP54
|
|
Visible Working Distance [Metric]
|
15 m
|
|
Laser Beam Projection
|
Cross Line
|
|
Line Diagram
|
Cross Line
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Battery Included
|
Yes
|
|
Laser Beam Color
|
Red Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
7
|
|
Number of Batteries Included
|
3
|
|
Packaging
|
Sleeve
|
