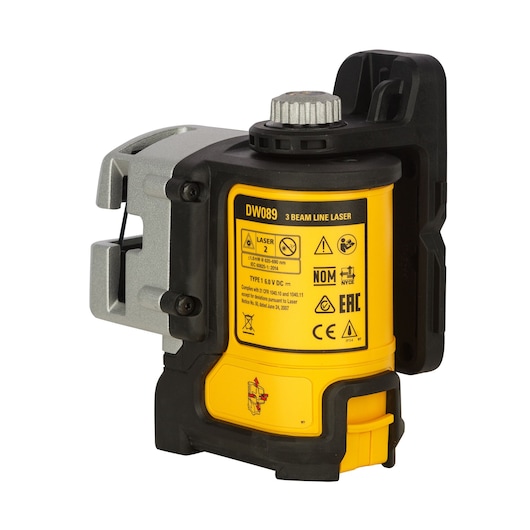

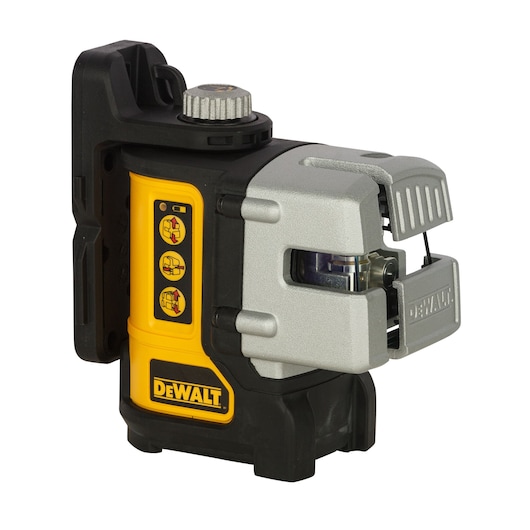

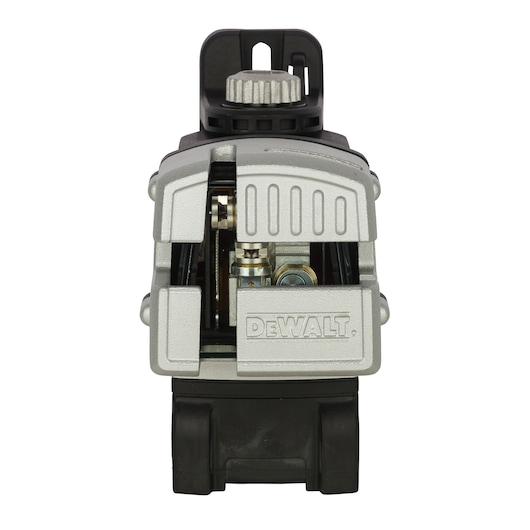

DW089K-XJ
Multi Line Laser Self-Levelling

Product Overview

The DW089 has a working range of 15m (50m with detector) and has an accuracy of +/-3mm at 10 metres. With easy to use features like self levelling up to 4 degress and an automatic out of level indicator. IP54 rated against water and dust ingress and a rubber overmoulded housing help maintain calibration in tough jobsite conditions.

Additional Features

  • Integrated magnetic pivoting base with 1/4" thread for use with tripod the built in magnetic pivot bracket mounts easily on metal surfaces
  • An adjustment dial for fine line movement (vertical & side)

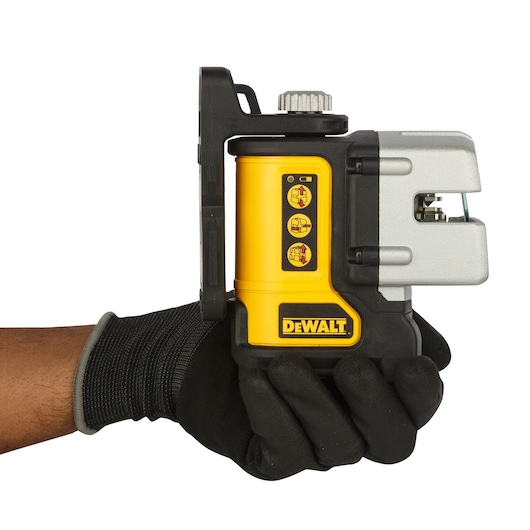

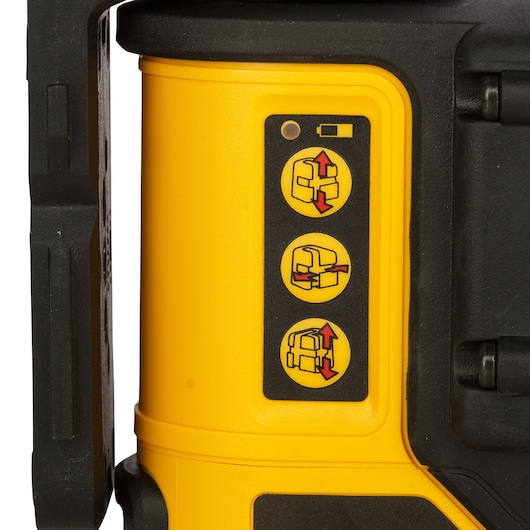

  • Touch pad control panel, 3 button operation and low battery indication for ease of use
  • Works with DE0892 detector

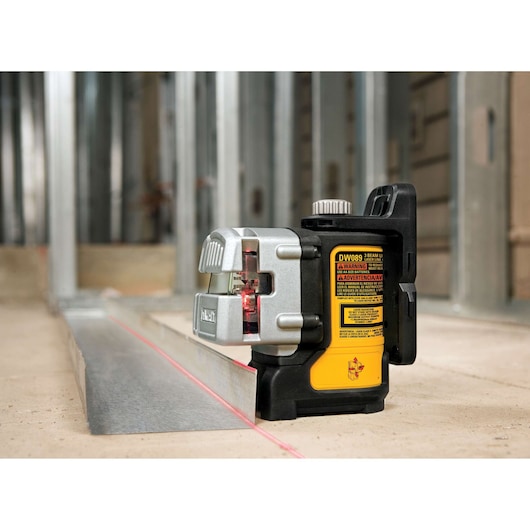

  • The 3 Beam Line Laser aids in 90-degree layout.
  • Magnetic pivoting base with 1/4” & 5/8” thread for tripod mounting.
  • Front & Rear mounted magnets allow flush attachment to metal track and steel.
  • Features 2 times brighter diode to increase visibility in bright job site conditions.

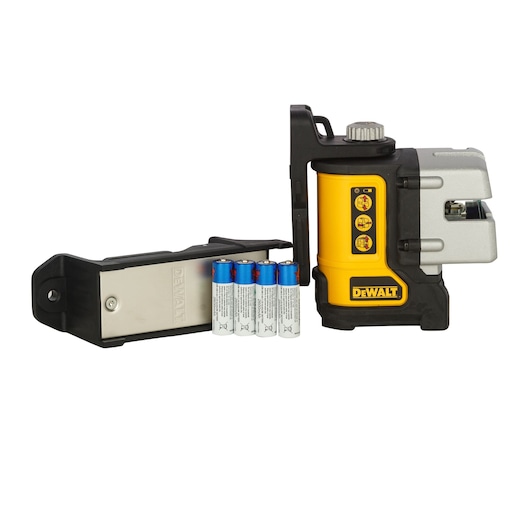

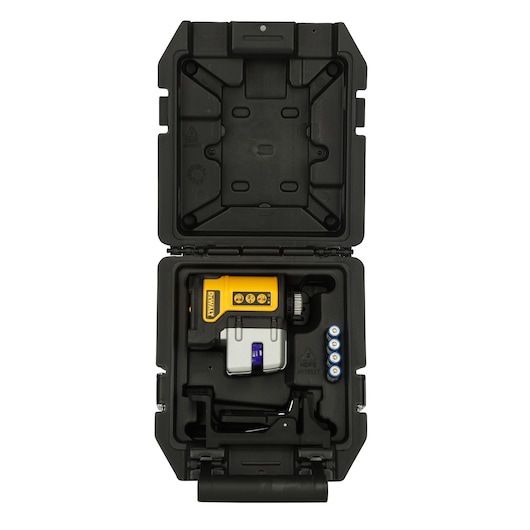

Includes

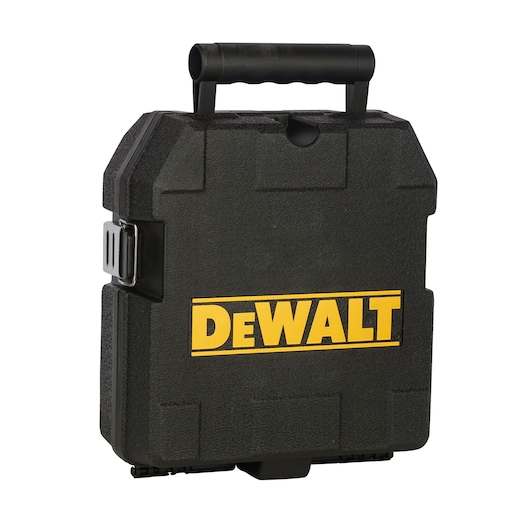

  • (1) Heavy Duty Carrying Blow Moulded Case
  • (4) AA Batteries
  • (1) Mounting Bracket

Specifications

Laser Accuracy
± 3mm @ 10 m
Working Distance with Detector [Metric]
50 m
CE Mark
Yes
Number of Beams
3
Laser Beam Projection
3 x 180°
Visible Working Distance [Metric]
15 m
IP Rating
IP54
Battery Source
Alkaline Battery (AA)
Battery Included
Yes
Laser Beam Color
Red Beam
Leveling Type
Self-leveling
Number of Pieces
7
Number of Batteries Included
4

Support

Warranty

  • 1 Year Limited Warranty

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
