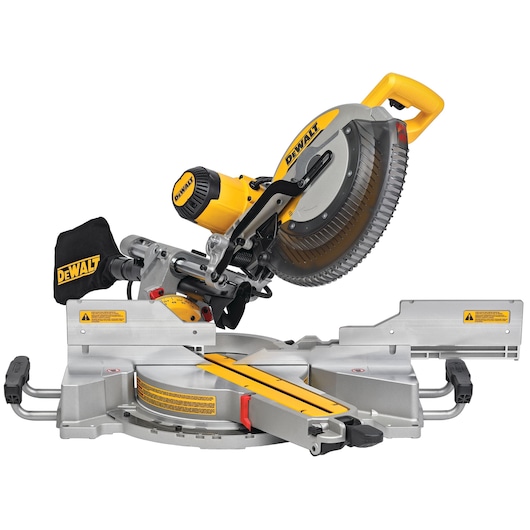

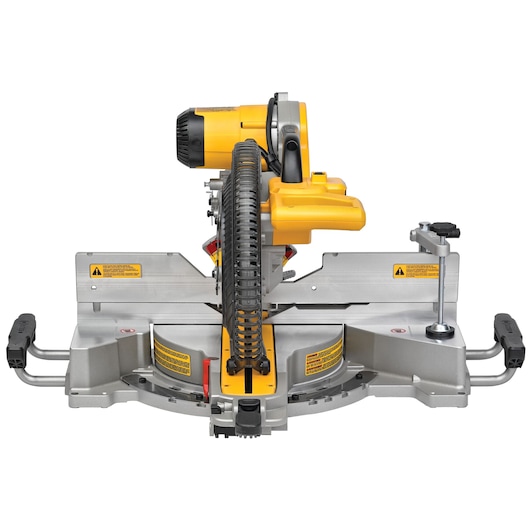

305mm Mitre Saw
DWS780-GB
305mm Mitre Saw

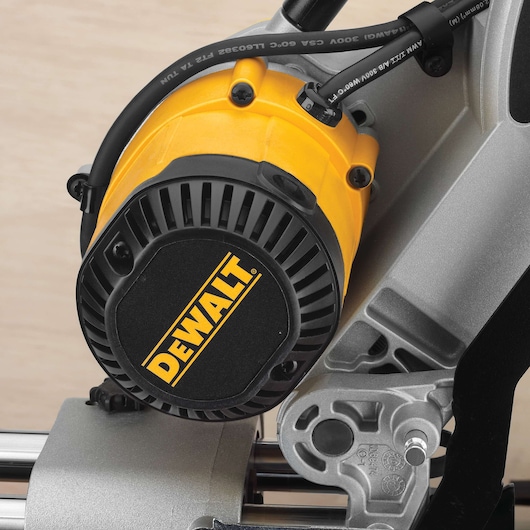

- POWERFUL 1675W MOTOR: High performance in all applications

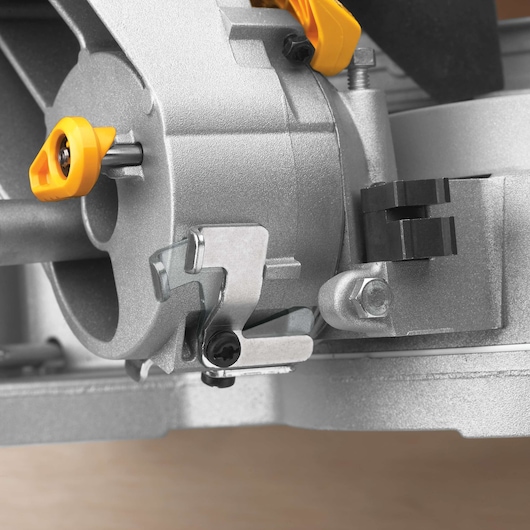

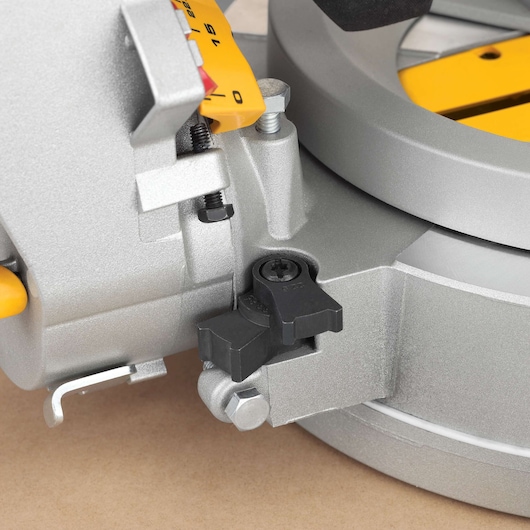

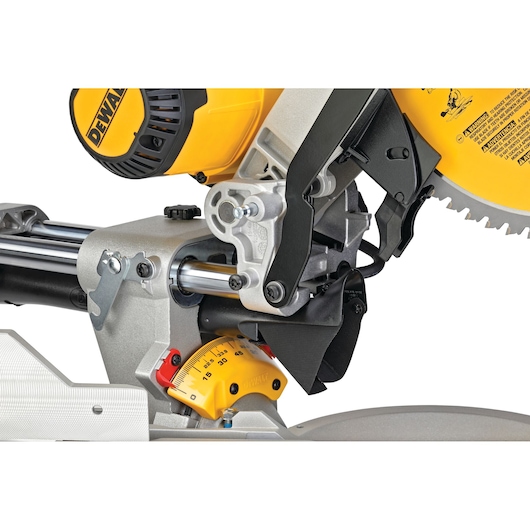

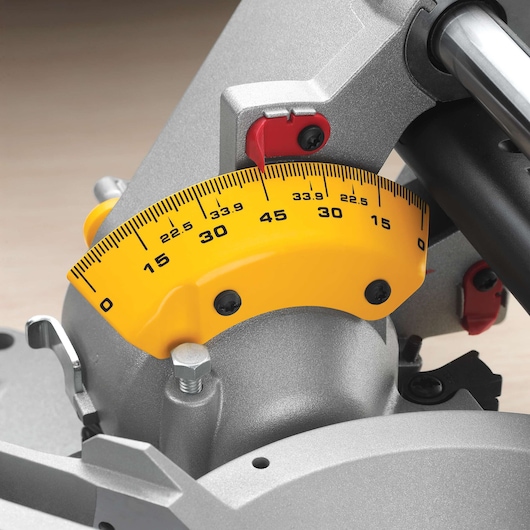

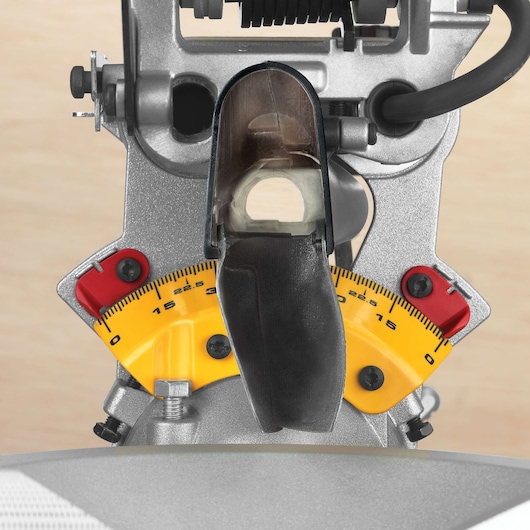

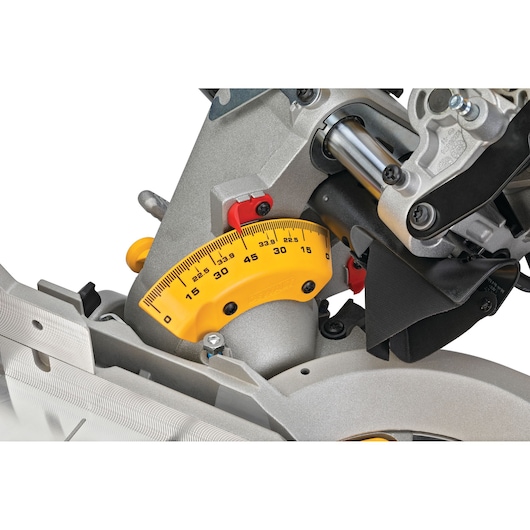

- DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right

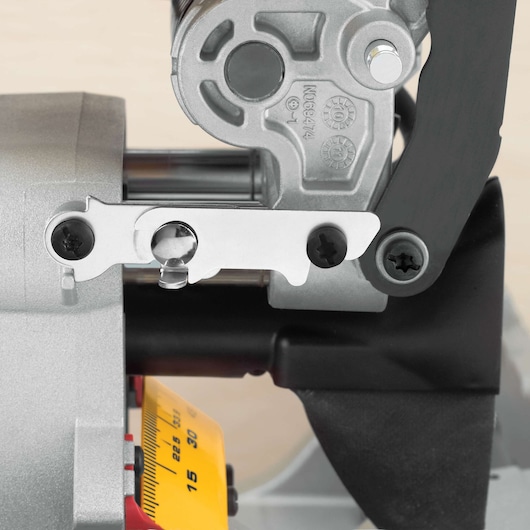

- DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
Product Overview

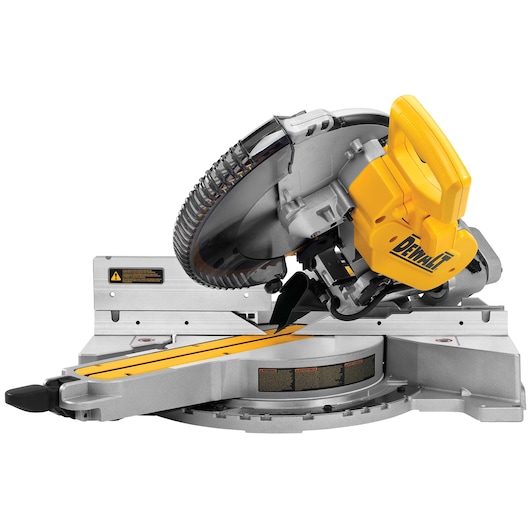

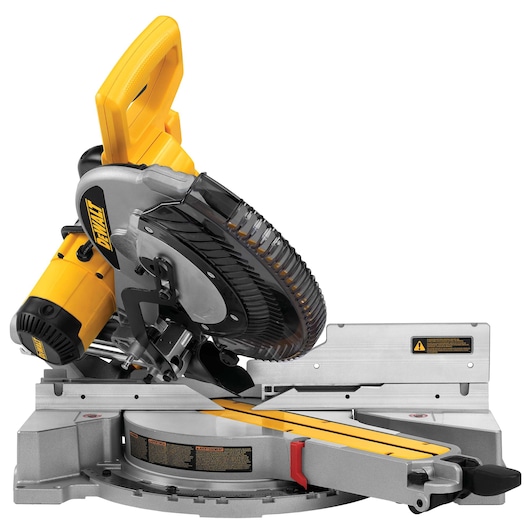

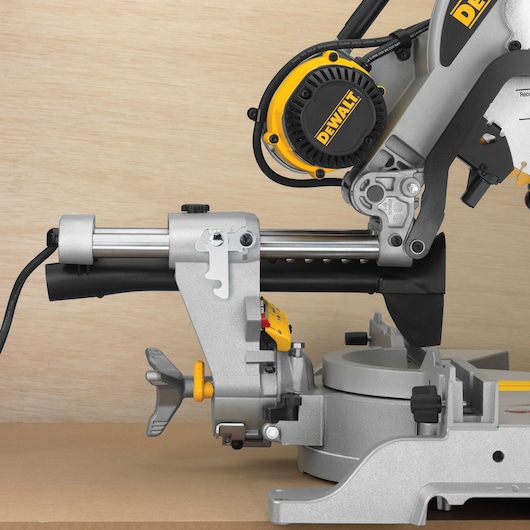

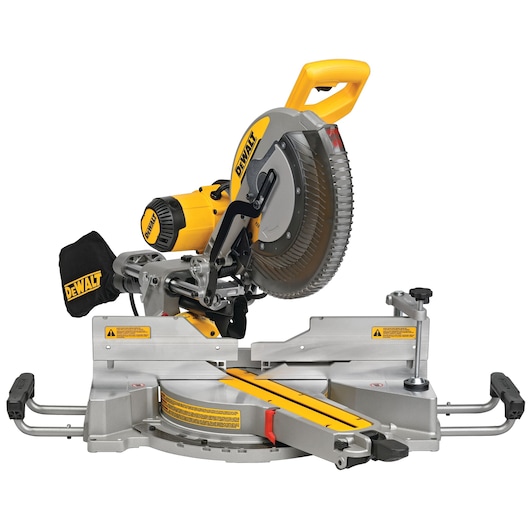

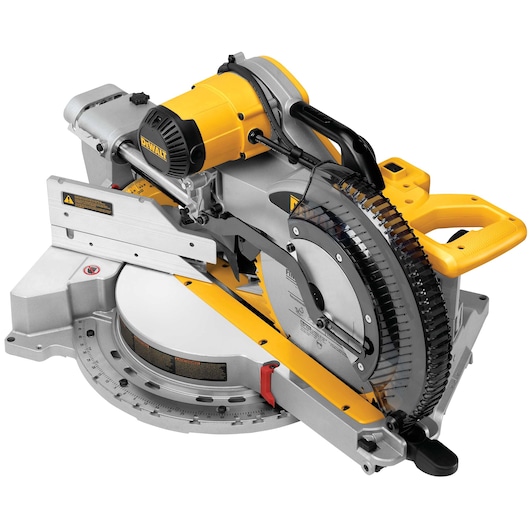

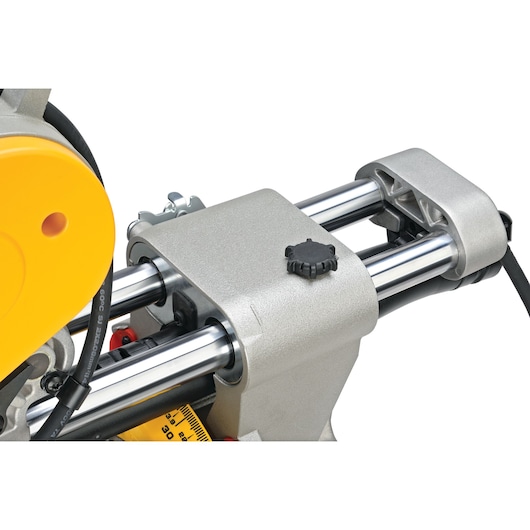

The 305mm Mitre Saw is engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 1675 watt motor also offers a maximum cutting capacity of 305 x 77mm. Other features include XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and machined side handles for increased portability on site.
Additional Features

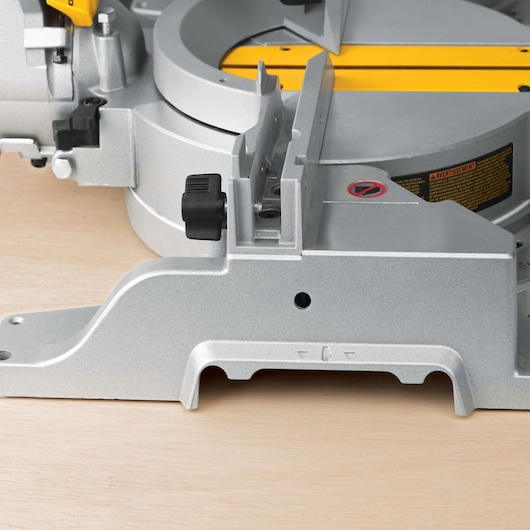

- MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
- Ideal for plumbers, electricians, heating, HVAC , and builders"
- SPEED CONTROL: Adjust cutting speed for ultimate control when cutting wood and other materials
- IMPRESSIVE CROSS CUT CAPACITY: 110mm x 303mm at 90°

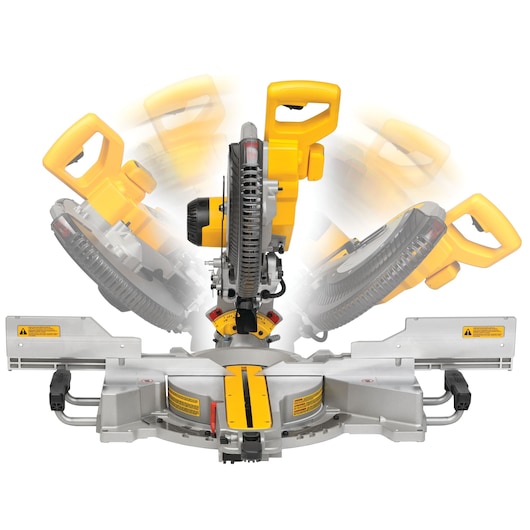

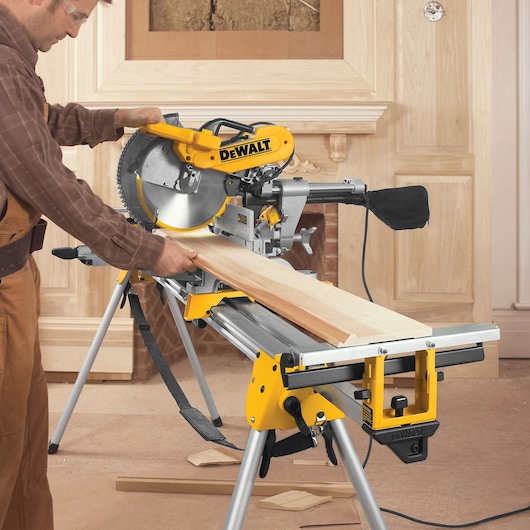

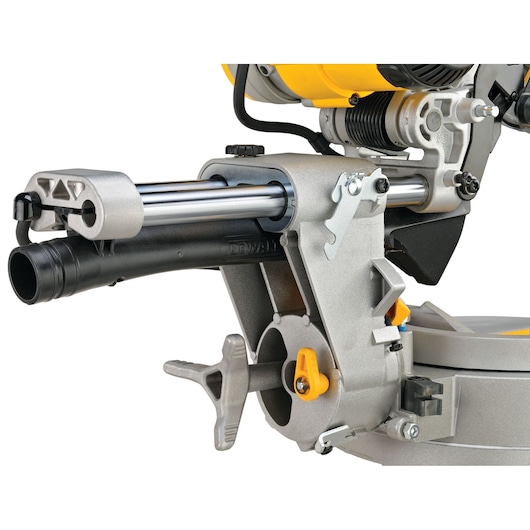

- LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles

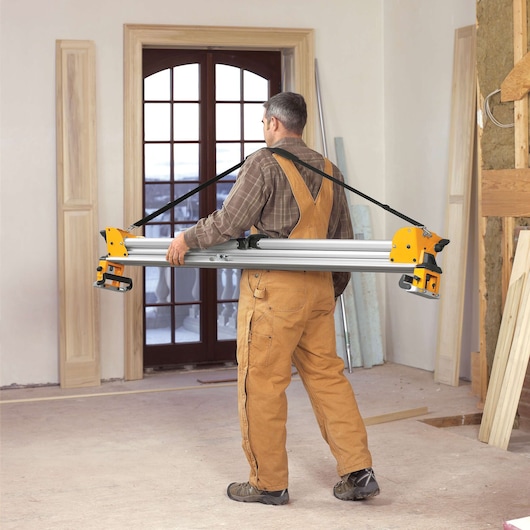

- COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite

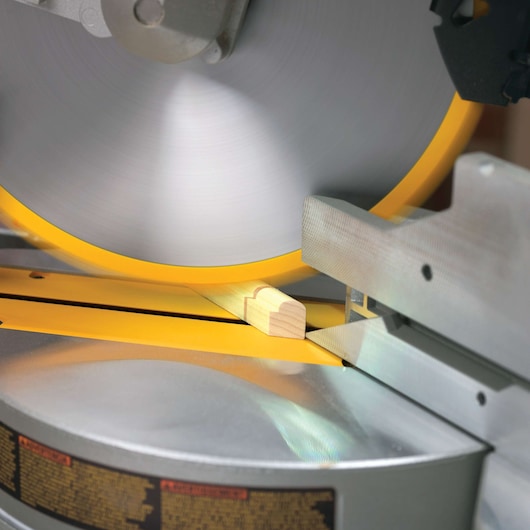

- XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required

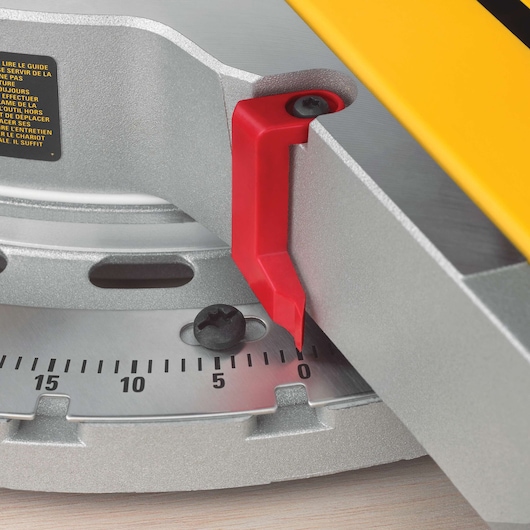

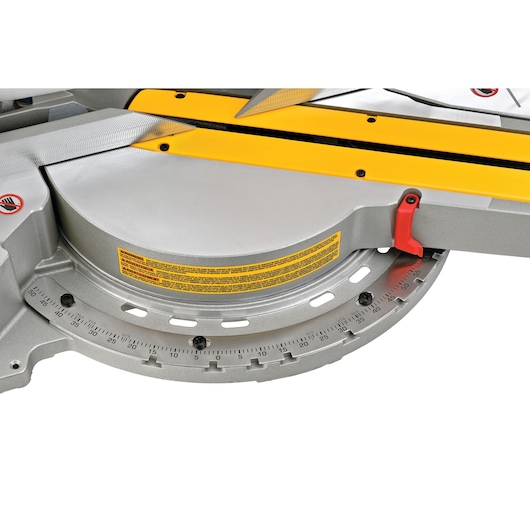

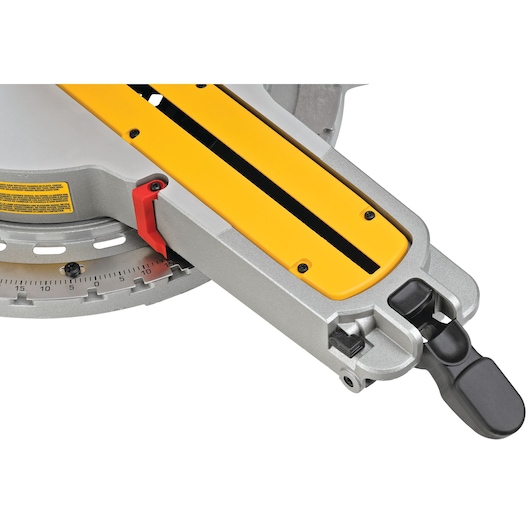

- STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees

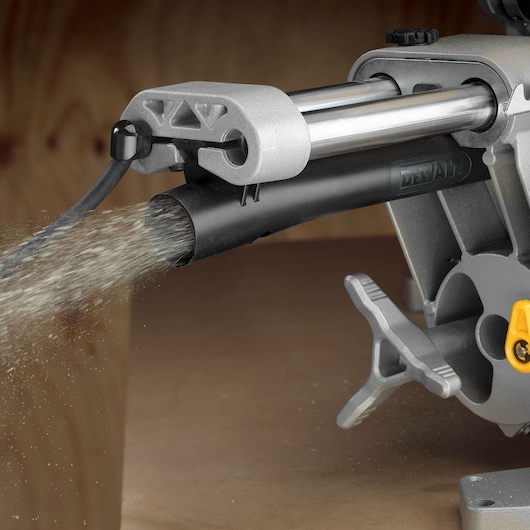

- AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection

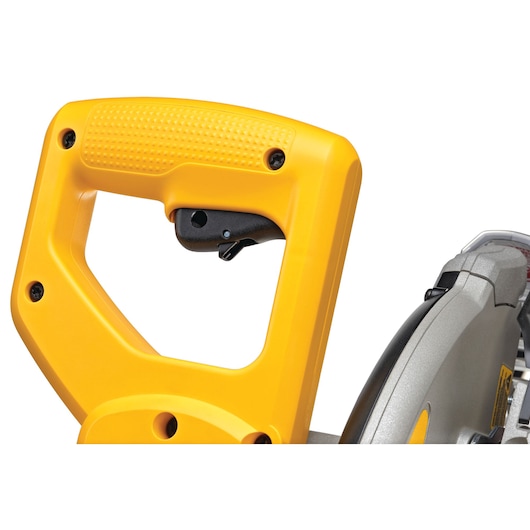

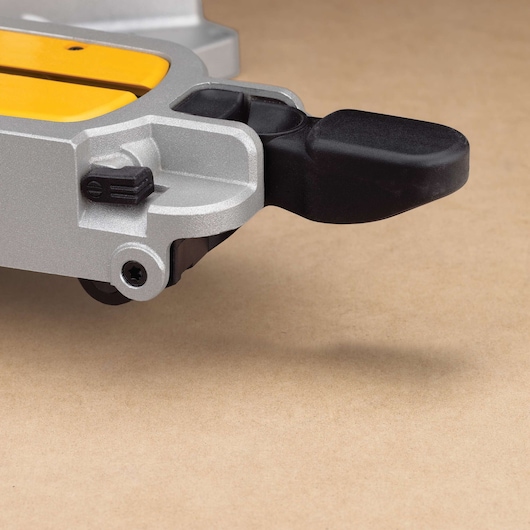

- CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
Includes
- (1) 305mm Mitre Saw
- (2) Base Extensions
- (1) Blade Wrench
- (1) 60 Tooth Blade
- (1) Dustbag
- (1) Material Clamp
Specifications
|
Bevel Capacity [deg]
|
49/49°
|
|
Blade Bore [mm]
|
30
|
|
Blade Diameter [mm]
|
305
|
|
Blade Speed [rpm]
|
1900-3800
|
|
Has Supplied in Storage Case Indicator?
|
No
|
|
Max. Cutting Capacity (45°/45°) [mm]
|
211 x 63
|
|
Max. Cutting Capacity (45°/90°) [mm]
|
211 x 112
|
|
Max. Cutting Capacity (90°/45°) [mm]
|
268 x 63
|
|
Max. Cutting Capacity (90°/90°) [mm]
|
303 x 110
|
|
Max. Depth of Cut [mm]
|
170
|
|
No Load Speed [RPM]
|
1900-3800
|
|
Packaging
|
Carton
|
|
Possible Mitre Angles [deg]
|
50°/60°
|
|
Power Input [W]
|
1675
|
|
Power Source
|
Corded
|
|
Product Height [mm]
|
396
|
|
Product Length [mm]
|
770
|
|
Product Weight [Kg]
|
25.5
|
|
Product Width [mm]
|
470
|
|
Saw Blade Thickness [mm]
|
2.6
|
|
Uncertainty K1 (Vibration)
|
1.5 m/s2
|
Support
Warranty
- 3 Year Limited Warranty
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
